엘피다 DDR3 SO-DIMM 2GB PC3-10600S-9-10-F1

Posted by DeviceLog.com | Posted in DRAM | Posted on 10-03-2012

1

엘피다(ELPIDA) DDR3 2GB 2Rx8 PC10600-9-10-F1 Frontside

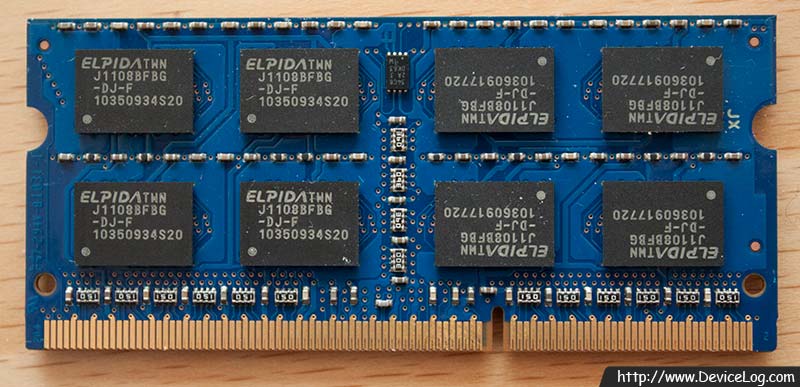

ELPIDA DDR3 2GB 2Rx8 PC10600-9-10-F1 Rear

  • 이름  : 엘피다(ELPIDA) 2GB 2Rx8 PC3-10600S-9-10-F1
  • 부품 번호 : EBJ21UE8BFU0-DJ-F
  • 제조사 : 엘피다 (ELPIDA)
  • 생산국 : 대만
  • 만든 해/주 : 2010/38
  • 규격 : DDR3, SO-DIMM, 204pin, Non-ECC
  • 기역 용량 : 2GB
  • 최대 전송 속도  : 1333Mbps
  • 전압 : 1.5V
  • 구성 : 256M words × 64 bits, 2 ranks
  • 칩 구성 : J1108BFBG-DJ-F × 16
  • 대기 시간 (CL-tRCD-tRP) : 9-9-9
  • PCB 높이 : 30mm
  • 동작 온도 범위 : 0~95℃
